DHM-250T Lab Mixer Vortex (Programmable) adopts brushless DC motor and microcomputer control technology. The unique full-touch screen operation mode is simple and easy to use, and it has built-in three modes: constant speed, pulse, and programming. By replacing different tube fixing sponges, it can mix and cultivate various commonly used test tubes, and up to 50 samples can be processed at one time. It is suitable for fields such as genetics, diagnostics, biology, microbiology, and medical analysis.
Product Introduction
DHM-250T Lab Mixer Vortex (Programmable) adopts brushless DC motor and microcomputer control technology. The unique full-touch screen operation mode is simple and easy to use, and it has built-in three modes: constant speed, pulse, and programming. By replacing different tube fixing sponges, it can mix and cultivate various commonly used test tubes, and up to 50 samples can be processed at one time. It is suitable for fields such as genetics, diagnostics, biology, microbiology, and medical analysis.


Product Features
1. LCD touch screen with graphical display for intuitive and convenient operation, and precise control by microprocessor.
2. Driven by a DC brushless motor, with precise speed control, long lifespan, and no maintenance required.
3. Multiple sponge tube racks available, compatible with various commonly used tubes, with wide range of applications.
4. Soft start for even acceleration, effectively avoiding sample splashing.
5. Can process up to 50 test samples at a time, with high throughput for efficient and rapid experiments.
6. Newly added impact mode can set high-speed forward and reverse rotation, effectively doubling the mixing effect.
7. Newly added programming mode allows for segmented processing of special materials, supporting up to 8 segments and repeatable operation.


Technical Parameters
Model: DHM-250T
Rotation speed range: 500~2500rpm
Reciprocating diameter (amplitude): 4mm horizontal rotation
Timing range: 1min ~ 99h59min
★Forward time: 1~99S
★Reverse time: 1~99S
★Data storage: 15 sets
★Programming mode: Maximum 8 program segments, can be operated in a loop
Input power: 70W
Dimensions: 410*276*432mm (L*W*H)
Maximum load: 4.5kg
Input voltage: AC100-240V 50-60Hz
Weight: 21kg

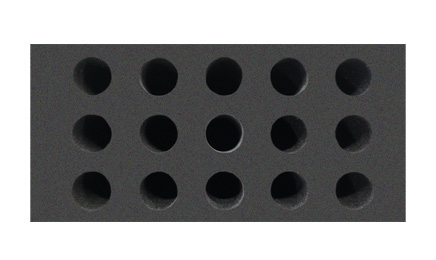

Tube rack model selection
Model Specification Applicable tube diameter
DHM-200-T10 50xΦ10mm Φ9~Φ10mm
DHM-200-T12 50xΦ12mm Φ11~Φ13mm
DHM-200-T15 50xΦ15mm Φ14~Φ17mm
DHM-200-T20 50xΦ20mm Φ18~Φ21mm
DHM-200-T25 15xΦ25mm Φ24~Φ27mm
DHM-200-T29 15xΦ29mm Φ28~Φ32mm
Other Customized Specifications Available for customization Available for customization


Single Page - Color Page
Name: Author: Action:
Lab Mixer Vortex DHM-250T Vortexer Download


Related products
Name: Model:
Lab Mixer Vortex DHM-250T
Multi sample Mixer DHM-300T
Multi Tube Mixer DHM-250



Product List
DHM-250T Unit
Host Machine Unit
Special Test Tube Rack Piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
1
1
1
